RAO2

RAO2

product line: Spiral

Radiator is suitable for connection to a low-temperature system in a vertical version only!

Material: Steel tubes 32, 57, 76, 89 or 108 mm; steel belts, width 0.8 mm
Max. operating temperature: 120 °C
Working overpressure: 1 MPa
Testing overpressure: 1.3 MPa
Connection threads: 2 × G1/2"
Standard colour: RAL 9016, white

Lengths - horizontal models: between 500 mm and 6 000 mm
Lengths - vertical models: between 500 mm and 2 500 mm

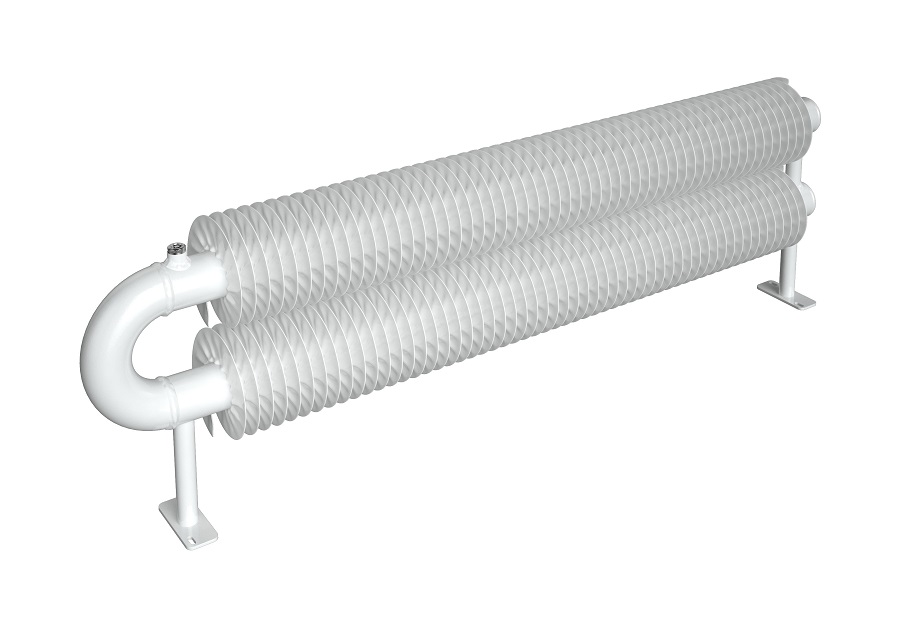

Horizontal models: floor and wall mounting

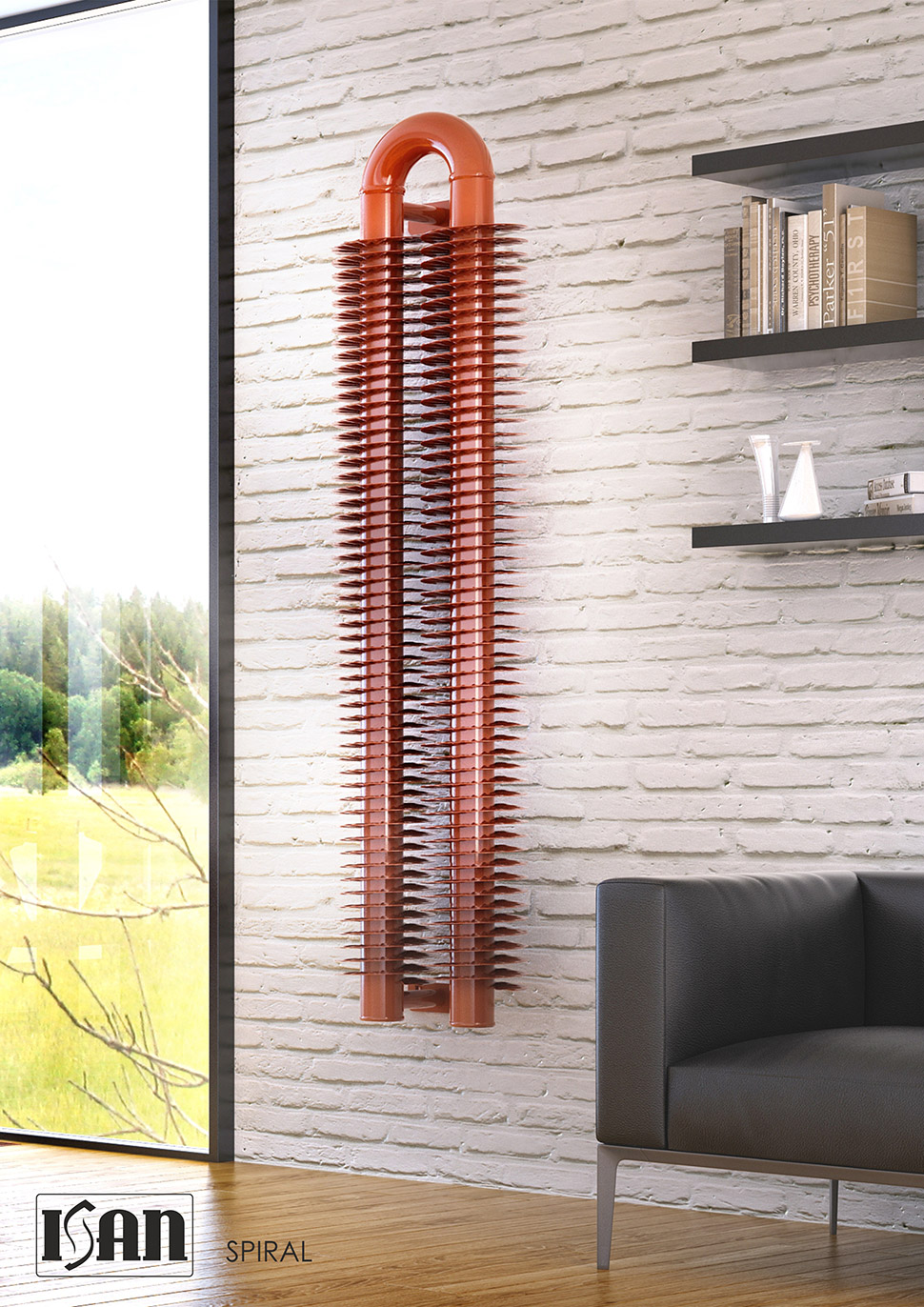

Vertical models: wall mounting

Contacts contact us
lenght [mm]
heating at a temp. gradient of 75/65/20 °C [W]
32x92mm 57x137mm 76x156mm 89x169mm 108x188mm
500 213 279 335 340 352
1000 440 576 692 681 768
1500 672 880 1057 1061 1212
2000 907 1189 1428 1469 1680
2500 1146 1501 1803 1896 2166
3000 1386 1816 2181 2338 2666
4000 1872 2454 2946 3245 3699
5000 2364 3098 3720 4175 4765
6000 2860 3748 4501 5142 5864
gallery colors download
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Black - RAL 9005 (19) Black RAL 9005 (19)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - metallic - S19 (83) Brass - metallic S19 (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow (traffic) white - RAL 9016 (01) Snow (traffic) white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial white - S41 (88) Antibacterial white S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
Light pink - RAL3015 MAT (K2) Light pink RAL3015 MAT (K2)
Window grey - RAL7040 MAT (K3) Window grey RAL7040 MAT (K3)
Claret violet - RAL4004 MAT (K4) Claret violet RAL4004 MAT (K4)
Light green - RAL6027 MAT (K5) Light green RAL6027 MAT (K5)
Pastel blue - RAL5024 MAT (K6) Pastel blue RAL5024 MAT (K6)
Pastel green - RAL6019 MAT (K72) Pastel green RAL6019 MAT (K72)
Grey beige - RAL1019 MAT (K8) Grey beige RAL1019 MAT (K8)
White matt - RAL 9016MAT (05) White matt RAL 9016MAT (05)
Ivory - RAL 9001MAT (K9) Ivory RAL 9001MAT (K9)
Jasmine - RAL1015 (12) Jasmine RAL1015 (12)
Fir green - RAL 6009 (43) Fir green RAL 6009 (43)
Window grey - RAL 7040 (31) Window grey RAL 7040 (31)
Pearl black - S22 (85) Pearl black S22 (85)
Pearl grey - S23 (86) Pearl grey S23 (86)
Light gold - S75 (L1) Light gold S75 (L1)
Beige grey - RAL 7006MAT (C7) Beige grey RAL 7006MAT (C7)
Dark brown matt - S59 (H4) Dark brown matt S59 (H4)
Brown quartz - J9 (S66) Brown quartz J9 (S66)
