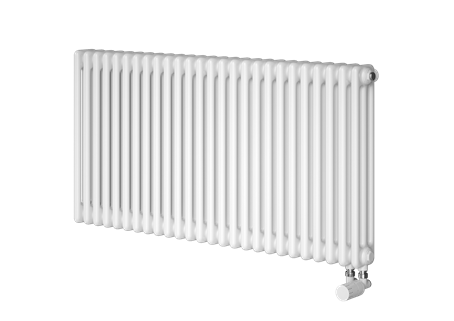

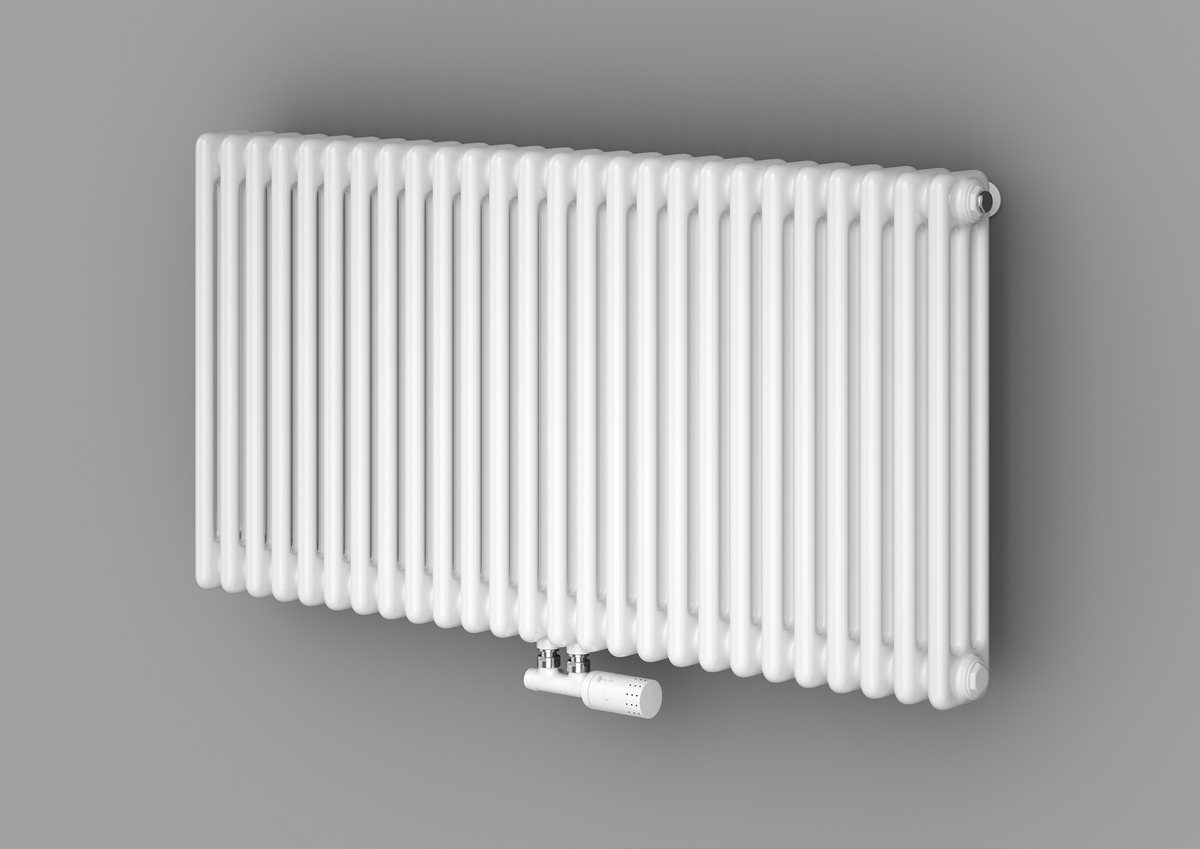

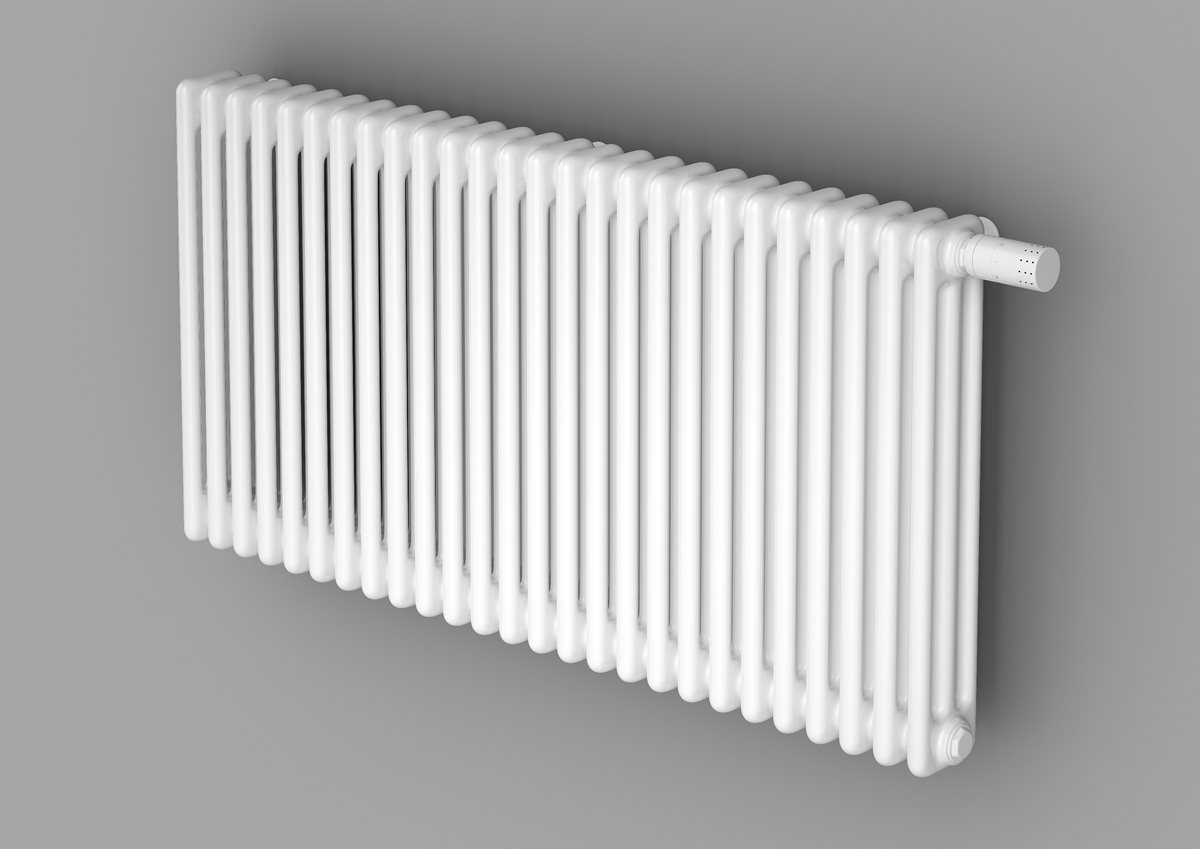

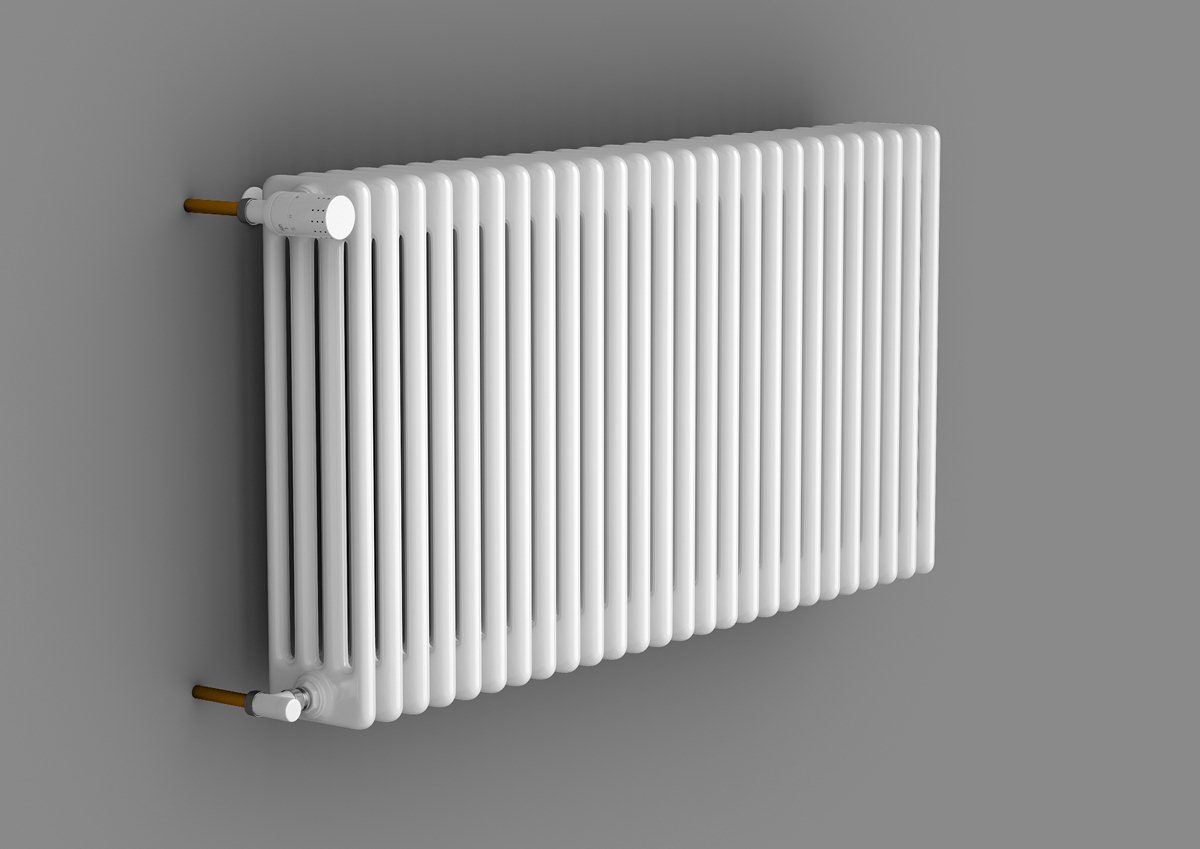

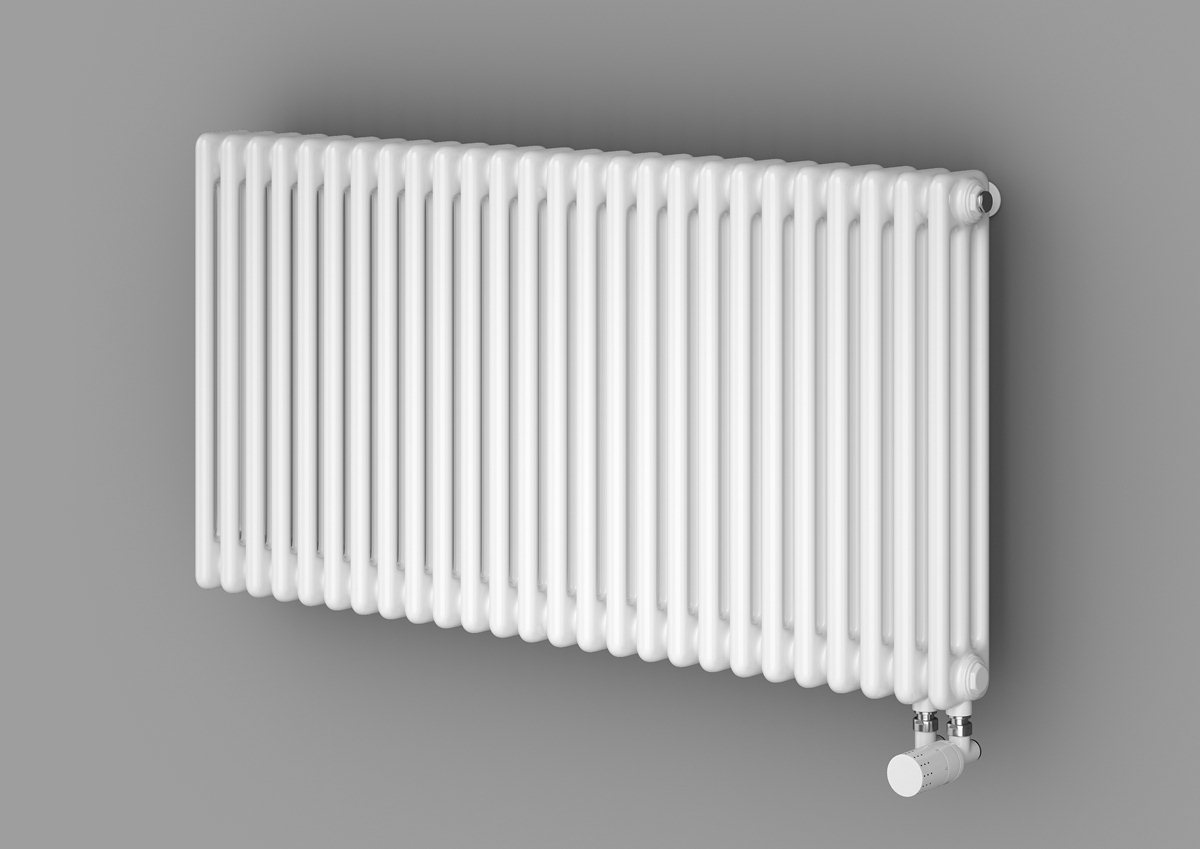

Atol C3

Atol C3

product line: Atol

Owing to their round edges, making them much safer and elegant design. ATOL column radiators are often installed in high-traffic areas in public buildings. The steel columns contribute to the low weight of the radiator. Individual columns consist of a specific number of pipes, as indicated in the radiator's identification. For example: C3 refers to a column made up of three pipes. ATOL radiators feature optimum heating fluid circulation with high heat-transfer efficiency. They are also suitable for low-temperature systems. Their high output makes them a popular and sough-after choice for installation in renovated old residential buildings, while their shape facilitates cleaning and maintenance.

height [mm] width [mm] heating [W]
75 / 65 / 20 °C
300 107 32
400 107 42
500 107 51
600 107 61
750 107 75
900 107 89
1000 107 99
1500 107 147
1800 107 176
2000 107 197
2500 107 249
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Black - RAL 9005 (19) Black RAL 9005 (19)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - metallic - S19 (83) Brass - metallic S19 (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow (traffic) white - RAL 9016 (01) Snow (traffic) white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial white - S41 (88) Antibacterial white S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
Light pink - RAL3015 MAT (K2) Light pink RAL3015 MAT (K2)
Window grey - RAL7040 MAT (K3) Window grey RAL7040 MAT (K3)
Claret violet  - RAL4004 MAT (K4) Claret violet RAL4004 MAT (K4)
Light green  - RAL6027 MAT (K5) Light green RAL6027 MAT (K5)
Pastel blue  - RAL5024 MAT (K6) Pastel blue RAL5024 MAT (K6)
Pastel green  - RAL6019 MAT (K72) Pastel green RAL6019 MAT (K72)
Grey beige  - RAL1019 MAT (K8) Grey beige RAL1019 MAT (K8)
White matt - RAL 9016MAT (05) White matt RAL 9016MAT (05)
Ivory - RAL 9001MAT (K9) Ivory RAL 9001MAT (K9)
Jasmine - RAL1015 (12) Jasmine RAL1015 (12)
Fir green - RAL 6009 (43) Fir green RAL 6009 (43)
Window grey - RAL 7040 (31) Window grey RAL 7040 (31)
Pearl black - S22 (85) Pearl black S22 (85)
Pearl grey - S23 (86) Pearl grey S23 (86)
Light gold - S75 (L1) Light gold S75 (L1)
Beige grey - RAL 7006MAT (C7) Beige grey RAL 7006MAT (C7)
Dark brown matt - S59 (H4) Dark brown matt S59 (H4)
Brown quartz - J9 (S66) Brown quartz J9 (S66)
