RAT2

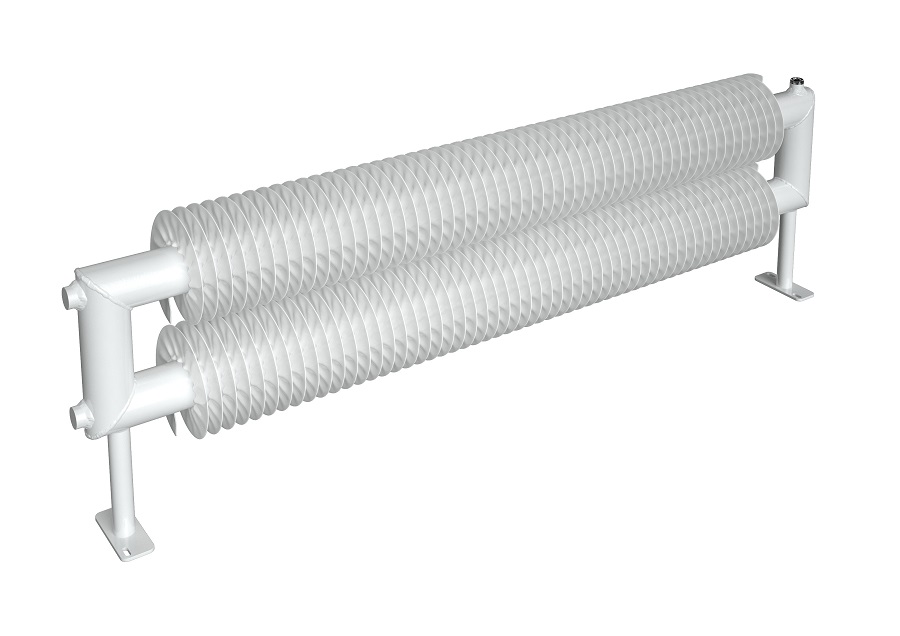

RAT2

product line: Spiral

Material: Steel tubes 32, 57, 76, 89 or 108 mm; steel belts, width 0.8 mm
Max. operating temperature: 120 °C
Working overpressure: 1 MPa
Testing overpressure: 1.3 MPa
Connection threads: 2 × G1/2"
Standard colour: RAL 9016, white

Lengths - horizontal models: between 500 mm and 6 000 mm
Lengths - vertical models: between 500 mm and 2 500 mm

Horizontal models: floor and wall mounting
Vertical models: wall mounting


Contacts contact us
lenght [mm]
heating at a temp. gradient of 75/65/20 °C [W]
32x92mm 57x137mm 76x156mm 89x169mm 108x188mm
500 218 285 315 342 368
1000 465 608 673 730 787
1500 725 948 1049 1138 1227
2000 994 1299 1437 1559 1681
2500 1269 1659 1835 1991 2146
3000 1549 2025 2240 2431 2621
4000 2123 2775 3070 3331 3591
5000 2711 3543 3920 4253 4585
6000 3309 4325 4786 5192 5598
gallery colors download
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Slate - texture - S10 (69) Slate - texture S10 (69)
Black - RAL 9005 (19) Black RAL 9005 (19)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - metallic - S19 (83) Brass - metallic S19 (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory (cream) - RAL 9001 (04) Ivory (cream) RAL 9001 (04)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow (traffic) white - RAL 9016 (01) Snow (traffic) white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial white - S41 (88) Antibacterial white S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Khaki - texture - S27 (21) Khaki - texture S27 (21)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus white - RAL 9018 (14) Papyrus white RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - texture - S32 (26) Pink coral - texture S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Dark grey - texture - S38 (50) Dark grey - texture S38 (50)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Light grey - texture - S37 (49) Light grey - texture S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
