RAO3

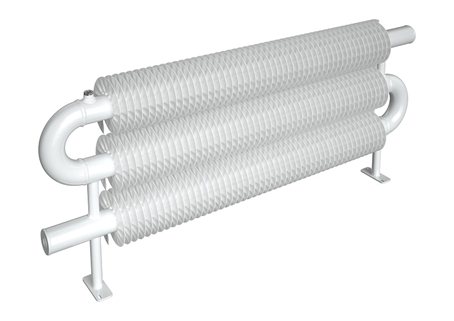

RAO3

product line: Spiral

Radiator is suitable for connection to a low-temperature system in a vertical version only!

Material: Steel tubes 32, 57, 76, 89 or 108 mm; steel belts, width 0.8 mm
Max. operating temperature: 120 °C
Working overpressure: 1 MPa
Testing overpressure: 1.3 MPa
Connection threads: 2 × G1/2"
Standard colour: RAL 9016, white

Lengths - horizontal models: between 500 mm and 6 000 mm
Lengths - vertical models: between 500 mm and 2 500 mm

Horizontal models: floor and wall mounting
Vertical models: wall mounting

Contacts contact us
lenght [mm]
heating at a temp. gradient of 75/65/20 °C [W]
32x92mm 57x137mm 76x156mm 89x169mm 108x188mm
500 285 378 444
1000 588 781 915 951 1120
1500 898 1193 1398 1508 1777
2000 1213 1612 1889 2092 2464
2500 1532 2035 2385 2696 3175
3000 1854 2462 2886 1854 2462
4000 2504 3326 3898 4599 5418
5000 3161 4199 4922 5928 6983
6000 3825 5081 5955 7293 8591

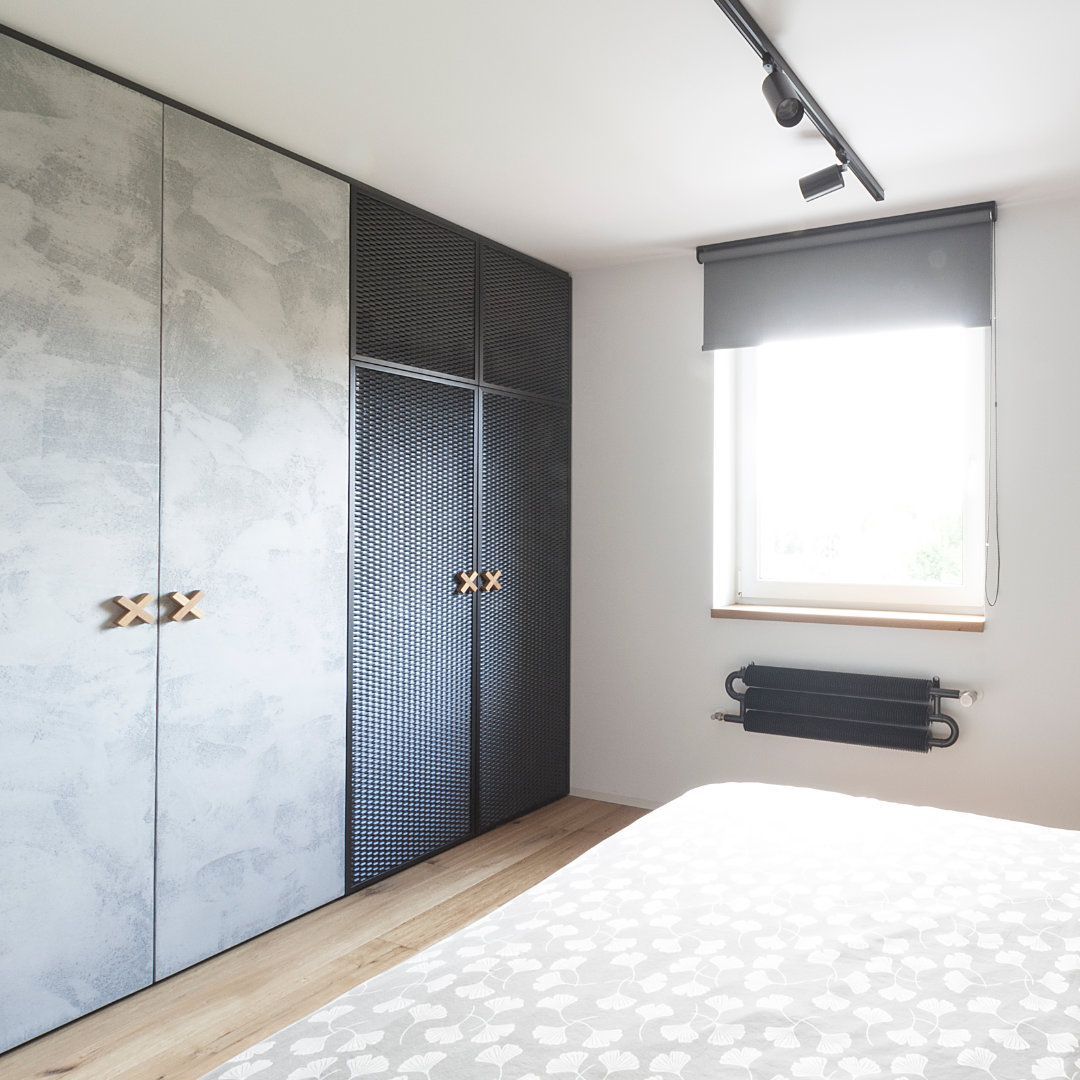

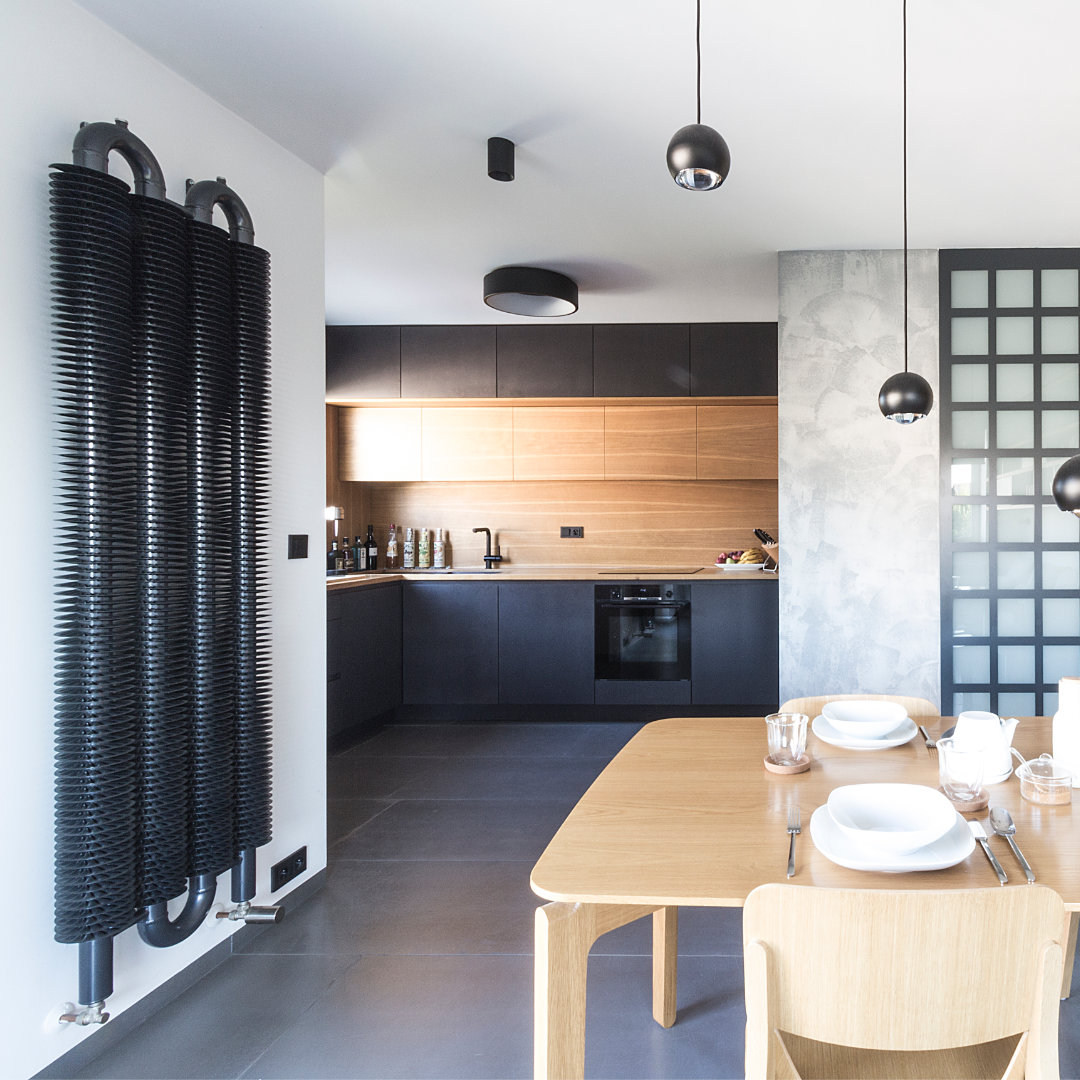

gallery colors download
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Black - RAL 9005 (19) Black RAL 9005 (19)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - metallic - S19 (83) Brass - metallic S19 (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow (traffic) white - RAL 9016 (01) Snow (traffic) white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial white - S41 (88) Antibacterial white S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
Light pink - RAL3015 MAT (K2) Light pink RAL3015 MAT (K2)
Window grey - RAL7040 MAT (K3) Window grey RAL7040 MAT (K3)
Claret violet - RAL4004 MAT (K4) Claret violet RAL4004 MAT (K4)
Light green - RAL6027 MAT (K5) Light green RAL6027 MAT (K5)
Pastel blue - RAL5024 MAT (K6) Pastel blue RAL5024 MAT (K6)
Pastel green - RAL6019 MAT (K72) Pastel green RAL6019 MAT (K72)
Grey beige - RAL1019 MAT (K8) Grey beige RAL1019 MAT (K8)
White matt - RAL 9016MAT (05) White matt RAL 9016MAT (05)
Ivory - RAL 9001MAT (K9) Ivory RAL 9001MAT (K9)
Jasmine - RAL1015 (12) Jasmine RAL1015 (12)
Fir green - RAL 6009 (43) Fir green RAL 6009 (43)
Window grey - RAL 7040 (31) Window grey RAL 7040 (31)
Pearl black - S22 (85) Pearl black S22 (85)
Pearl grey - S23 (86) Pearl grey S23 (86)
Light gold - S75 (L1) Light gold S75 (L1)
Beige grey - RAL 7006MAT (C7) Beige grey RAL 7006MAT (C7)
Dark brown matt - S59 (H4) Dark brown matt S59 (H4)
Brown quartz - J9 (S66) Brown quartz J9 (S66)
