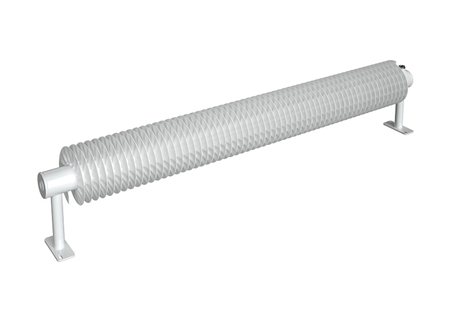

RA1

RA1

product line: Spiral

Radiator is suitable for connection to a low-temperature system in a vertical version only!

Material: Steel tubes 32, 57, 76, 89 or 108 mm; steel belts, width 0.8 mm
Max. operating temperature: 120 °C
Working overpressure: 1 MPa
Testing overpressure: 1.3 MPa
Connection threads: 2 × G1/2"
Standard colour: RAL 9016, white

Lengths - horizontal models: between 500 mm and 6 000 mm
Lengths - vertical models: between 500 mm and 2 500 mm

Horizontal models: floor and wall mounting
Vertical models: wall mounting

Contacts contact us
lenght [mm]
heating at a temp. gradient of 75/65/20 °C [W]
32x92mm 57x137mm 76x156mm 89x169mm 108x188mm
500 136 173 188 190 195
1000 280 356 388 393 415
1500 427 544 593 615 653
2000 577 735 801 852 904
2500 729 929 1012 1099 1166
3000 882 1123 1224 1354 1436
4000 1191 1518 1654 1879 1993
5000 1504 1916 2088 2419 2566
6000 1819 2318 2526 2978 3159
