Atol CAH3

Atol CAH3

Configurator Atol Contacts

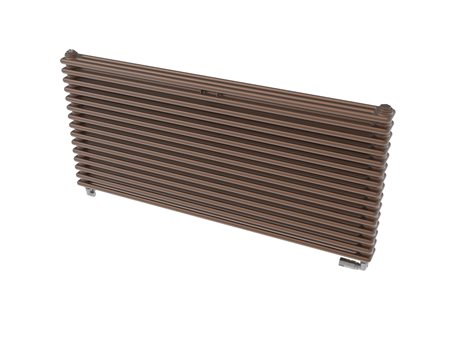

Horizontally mounted ATOL steel column radiators provide a suitable designer alternative to standard wall heating units. The horizontally arranged columns are both elegant and airy, sure to complement the interior with another aesthetic element that will keep you warm at the same time.

The Atol Horizontal range offers two-pipe C2 or three-pipe C3 models, with a maximum height of 720 mm and a length of 2000 mm. The radiators are available in a choice of colors as per the ISAN colour coding or the basic RAL colour chart.

Material: tube diameter 25 mm, thickness 1.25 mm
Maximum operating overpressure: 1000 kPa (10 bar)
Testing overpressure: 1300 kPa (13 bar)
Maximum operating temperature: 95 °C
Basic color: snow white RAL 9016
Connection threads: 2x G1/2"
Height of one element: 46 mm +/- 1.5%

Heating output, weight and water volume are given per element, the values must be converted to the number of elements.

Atol CAH3

Radiator to be connected to central heating system

gallery colors download

Anthracite - metallic - S02 (61)

Anthracite - metallic S02 (61)

Black - RAL 9005 (19)

Black RAL 9005 (19)

Copper - metallic - S03 (62)

Copper - metallic S03 (62)

Brass - metallic - S19 (83)

Brass - metallic S19 (83)

Sandstone - texture - S13 (72)

Sandstone - texture S13 (72)

Ivory - texture - S08 (67)

Ivory - texture S08 (67)

Snow (traffic) white - RAL 9016 (01)

Snow (traffic) white RAL 9016 (01)

Snow-white - texture - S09 (68)

Snow-white - texture S09 (68)

Silver - metallic - S05 (64)

Silver - metallic S05 (64)

Aquamarine - metallic - S29 (23)

Aquamarine - metallic S29 (23)

Black velvet - matt - S40 (51)

Black velvet - matt S40 (51)

Antibacterial white - S41 (88)

Antibacterial white S41 (88)

Antique gold - metallic - S36 (48)

Antique gold - metallic S36 (48)

Transparent paint - S20 (84)

Transparent paint S20 (84)

Lava ash - texture - S33 (27)

Lava ash - texture S33 (27)

Sapphire - S30 (24)

Sapphire S30 (24)

Cinnamon - texture - S35 (29)

Cinnamon - texture S35 (29)

Gold olive - texture - S28 (22)

Gold olive - texture S28 (22)

Champagne - metallic - S31 (25)

Champagne - metallic S31 (25)

Light pink - RAL3015 MAT (K2)

Light pink RAL3015 MAT (K2)

Window grey - RAL7040 MAT (K3)

Window grey RAL7040 MAT (K3)

Claret violet - RAL4004 MAT (K4)

Claret violet RAL4004 MAT (K4)

Light green - RAL6027 MAT (K5)

Light green RAL6027 MAT (K5)

Pastel blue - RAL5024 MAT (K6)

Pastel blue RAL5024 MAT (K6)

Pastel green - RAL6019 MAT (K72)

Pastel green RAL6019 MAT (K72)

Grey beige - RAL1019 MAT (K8)

Grey beige RAL1019 MAT (K8)

White matt - RAL 9016MAT (05)

White matt RAL 9016MAT (05)

Ivory - RAL 9001MAT (K9)

Ivory RAL 9001MAT (K9)

Jasmine - RAL1015 (12)

Jasmine RAL1015 (12)

Fir green - RAL 6009 (43)

Fir green RAL 6009 (43)

Window grey - RAL 7040 (31)

Window grey RAL 7040 (31)

Pearl black - S22 (85)

Pearl black S22 (85)

Pearl grey - S23 (86)

Pearl grey S23 (86)

Light gold - S75 (L1)

Light gold S75 (L1)

Beige grey - RAL 7006MAT (C7)

Beige grey RAL 7006MAT (C7)

Dark brown matt - S59 (H4)

Dark brown matt S59 (H4)

Brown quartz - J9 (S66)

Brown quartz J9 (S66)

Mounting instructions - ATOL Horizontal ISAN ATOL technical catalog
