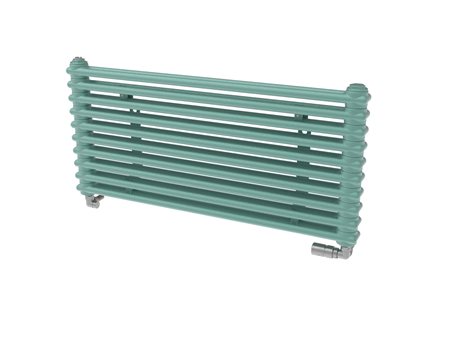

Atol CAH2

Atol CAH2

product line: Atol
Horizontally mounted ATOL steel column radiators provide a suitable designer alternative to standard wall heating units. The horizontally arranged columns are both elegant and airy, sure to complement the interior with another aesthetic element that will keep you warm at the same time.

The Atol Horizontal range offers two-pipe C2 or three-pipe C3 models, with a maximum height of 720 mm and a length of 2000 mm. The radiators are available in a choice of colors as per the ISAN colour coding or the basic RAL colour chart.



lenght [mm] depth [mm] heating [W]
75 / 65 / 20 °C

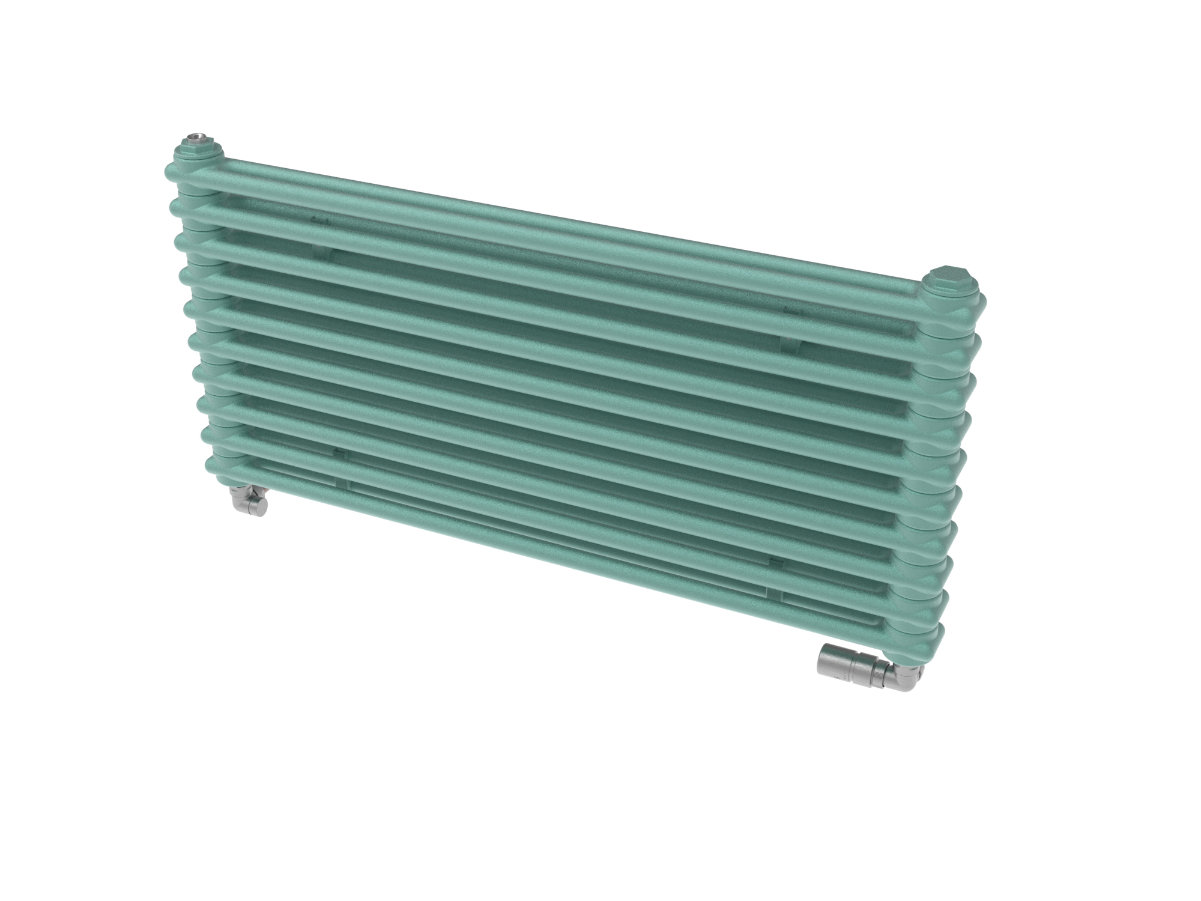

1000 66 72
1200 66 86
1500 66 107
1800 66 129
2000 66 144
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Slate - texture - S10 (69) Slate - texture S10 (69)
Black - RAL 9005 (19) Black RAL 9005 (19)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - metallic - S19 (83) Brass - metallic S19 (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory (cream) - RAL 9001 (04) Ivory (cream) RAL 9001 (04)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow (traffic) white - RAL 9016 (01) Snow (traffic) white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial white - S41 (88) Antibacterial white S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Khaki - texture - S27 (21) Khaki - texture S27 (21)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus white - RAL 9018 (14) Papyrus white RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - texture - S32 (26) Pink coral - texture S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Dark grey - texture - S38 (50) Dark grey - texture S38 (50)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Light grey - texture - S37 (49) Light grey - texture S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
