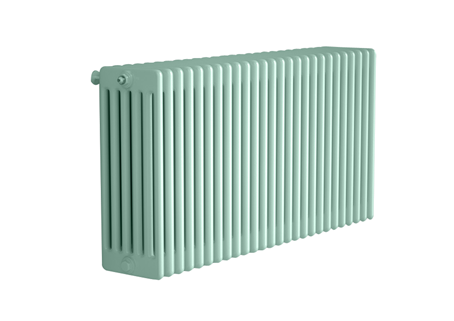

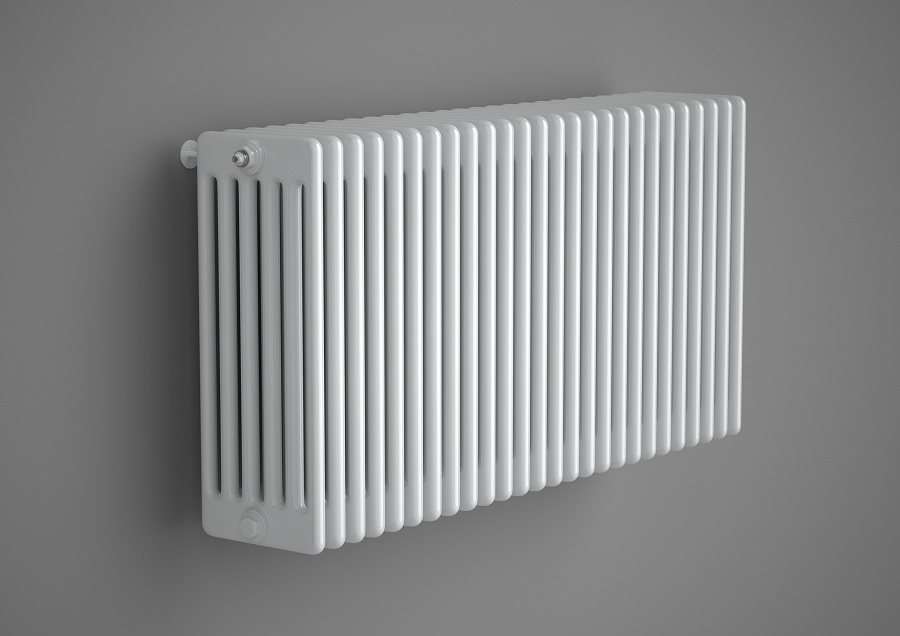

Atol C6

Atol C6

product line: Atol

Material: steel tubes diameter 25mm, thickness 1.25mm
Max. working pressure: 1 MPA (10 bar)
Testing pressure: 1,3 MPA (13 bar)
Max. working temperature: 95°C
Basic colour: snow white RAL9016
Connection thread: 2x G1/2“
One element width: 46 mm +/– 1,5%
Max. number of elements: 40pc

height [mm] width [mm] heating [W]
75 / 65 / 20 °C
300 203 62
400 203 82
500 203 101
600 203 119
750 203 147
900 203 175
1000 203 193
1500 203 282
1800 203 334
2000 203 368
2500 203 454
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Slate - texture - S10 (69) Slate - texture S10 (69)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - (83) Brass (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory - RAL 9001 (04) Ivory RAL 9001 (04)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow-white - RAL 9016 (01) Snow-white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial - S41 (88) Antibacterial S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Khaki - texture - S27 (21) Khaki - texture S27 (21)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Lime - S26 (09) Lime S26 (09)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus - RAL 9018 (14) Papyrus RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - texture - S32 (26) Pink coral - texture S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Dark grey - texture - S38 (50) Dark grey - texture S38 (50)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Light grey - texture - S37 (49) Light grey - texture S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
