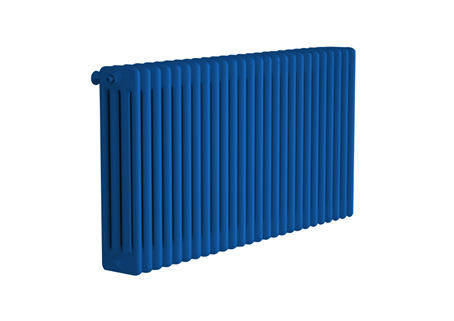

Atol C4

Atol C4

product line: Melody

Material: steel tubes diameter 25mm, thickness 1.25mm
Max. working pressure: 1 MPA (10 bar)
Testing pressure: 1,3 MPA (13 bar)
Max. working temperature: 95°C
Basic colour: snow white RAL9016
Connection thread: 2x G1/2“
One element width: 46 mm +/– 1,5%
Max. number of elements: 40pc

height [mm] width [mm] heating [W]
75 / 65 / 20 °C
300 148 42
400 148 56
500 148 69
600 148 82
750 148 101
900 148 120
1000 148 133
1500 148 196
1800 148 234
2000 148 260
2500 148 323
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Slate - texture - S10 (69) Slate - texture S10 (69)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - (83) Brass (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory - RAL 9001 (04) Ivory RAL 9001 (04)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow-white - RAL 9016 (01) Snow-white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial - S41 (88) Antibacterial S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Khaki - texture - S27 (21) Khaki - texture S27 (21)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Lime - S26 (09) Lime S26 (09)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus - RAL 9018 (14) Papyrus RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - texture - S32 (26) Pink coral - texture S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Dark grey - texture - S38 (50) Dark grey - texture S38 (50)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Light grey - texture - S37 (49) Light grey - texture S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
