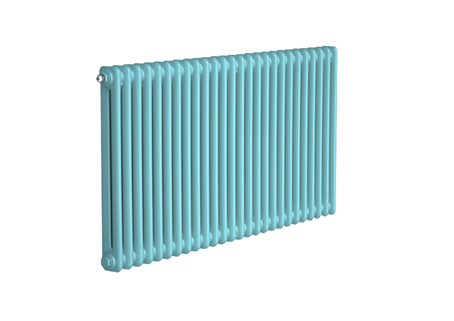

Atol C2

Atol C2

product line: Atol

Material: steel tubes diameter 25mm, thickness 1.25mm
Max. working pressure: 1 MPA (10 bar)
Testing pressure: 1,3 MPA (13 bar)
Max. working temperature: 95°C
Basic colour: snow white RAL9016
Connection thread: 2x G1/2“
One element width: 46 mm +/– 1,5%

Table shows heating output for 1 element.
See ATOL Configurator for details.





height [mm] depth [mm] heating [W]
75 / 65 / 20 °C
300 66 23
400 66 30
500 66 37
600 66 44
750 66 54
900 66 65
1000 66 72
1500 66 107
1800 66 129
2000 66 144
2500 66 183
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Slate - texture - S10 (69) Slate - texture S10 (69)
Black - RAL 9005 (19) Black RAL 9005 (19)
Copper - metallic - S03 (62) Copper - metallic S03 (62)
Brass - metallic - S19 (83) Brass - metallic S19 (83)
Sandstone - texture - S13 (72) Sandstone - texture S13 (72)
Ivory (cream) - RAL 9001 (04) Ivory (cream) RAL 9001 (04)
Ivory - texture - S08 (67) Ivory - texture S08 (67)
Snow (traffic) white - RAL 9016 (01) Snow (traffic) white RAL 9016 (01)
Snow-white - texture - S09 (68) Snow-white - texture S09 (68)
Silver - metallic - S05 (64) Silver - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Antibacterial white - S41 (88) Antibacterial white S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Khaki - texture - S27 (21) Khaki - texture S27 (21)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Lava ash - texture - S33 (27) Lava ash - texture S33 (27)
Lime - S26 (09) Lime S26 (09)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus white - RAL 9018 (14) Papyrus white RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - texture - S32 (26) Pink coral - texture S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - texture - S35 (29) Cinnamon - texture S35 (29)
Dark grey - texture - S38 (50) Dark grey - texture S38 (50)
Gold olive - texture - S28 (22) Gold olive - texture S28 (22)
Light grey - texture - S37 (49) Light grey - texture S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
