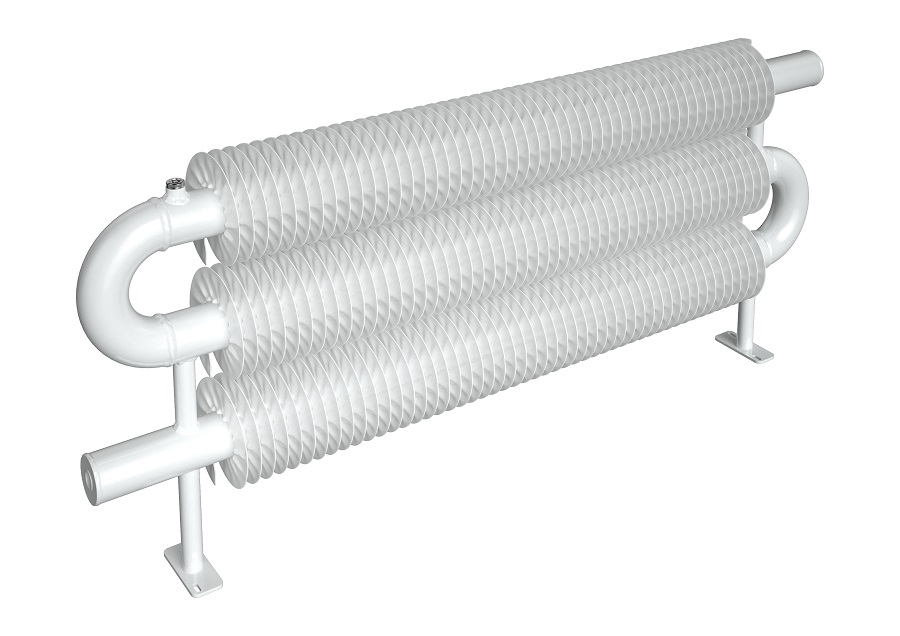

RAO3

RAO3

produkt kollektion: Spiral

Material: Steel tubes 32, 57 or 76 mm; steel belts, width 0.8 mm
Max. operating temperature: 120 °C
Working overpressure: 1 MPa
Testing overpressure: 1.3 MPa
Connection threads: 2 × G1/2"
Standard colour: RAL 9016, white
Lengths: between 500 mm and 6 000 mm

Länge [mm]
leistung bei einem Temp. von 75/65/20 °C [W]
32x2x92mm 57x2,5x137mm 76x2,5x156mm
500 425 461 479
1000 1050 1170 1186
1500 1680 1879 1893
2000 2225 2618 2644
2500 2770 3291 3365
3000 3275 4050 4091
4000 4404 5515 5575
5000 5523 6975 7119
6000 6643 8244 8337
Schiefer - struktur - S10 (69) Schiefer - struktur S10 (69)
Kupfer- metallic - S03 (62) Kupfer- metallic S03 (62)
Messing - (83) Messing (83)
Sandstein - struktur  - S13 (72) Sandstein - struktur S13 (72)
Elfenbein  - RAL 9001 (04) Elfenbein RAL 9001 (04)
Elfenbein - struktur - S08 (67) Elfenbein - struktur S08 (67)
Snow-white - RAL 9016 (01) Snow-white RAL 9016 (01)
Snow white - struktur - S09 (68) Snow white - struktur S09 (68)
Silber - metallic  - S05 (64) Silber - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Antibacterial - S41 (88) Antibacterial S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Khaki - struktur - S27 (21) Khaki - struktur S27 (21)
Lava ash - struktur - S33 (27) Lava ash - struktur S33 (27)
Lime - S26 (09) Lime S26 (09)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus - RAL 9018 (14) Papyrus RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - struktur - S32 (26) Pink coral - struktur S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - struktur - S35 (29) Cinnamon - struktur S35 (29)
Light grey - struktur - S37 (49) Light grey - struktur S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
Dark grey - struktur - S38 (50) Dark grey - struktur S38 (50)
Gold olive - struktur - S28 (22) Gold olive - struktur S28 (22)
