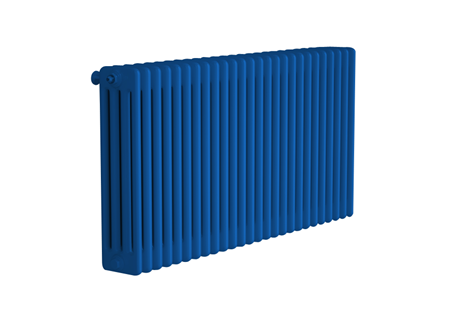

Atol C4

Atol C4

produkt kollektion: Melody

Material: steel tubes diameter 25mm, thickness 1.25mm
Max. working pressure: 1 MPA (10 bar)
Testing pressure: 1,3 MPA (13 bar)
Max. working temperature: 95°C
Basic colour: snow white RAL9016
Connection thread: 2x G1/2“
One element width: 46 mm +/– 1,5%
Max. number of elements: 40pc

Höhe[mm] Breite [mm] Heizung [W]
75 / 65 / 20 °C
300 148 42
400 148 56
500 148 69
600 148 82
750 148 101
900 148 120
1000 148 133
1500 148 196
1800 148 234
2000 148 260
2500 148 323
Schiefer - struktur - S10 (69) Schiefer - struktur S10 (69)
Kupfer- metallic - S03 (62) Kupfer- metallic S03 (62)
Messing - (83) Messing (83)
Sandstein - struktur  - S13 (72) Sandstein - struktur S13 (72)
Elfenbein  - RAL 9001 (04) Elfenbein RAL 9001 (04)
Elfenbein - struktur - S08 (67) Elfenbein - struktur S08 (67)
Snow-white - RAL 9016 (01) Snow-white RAL 9016 (01)
Snow white - struktur - S09 (68) Snow white - struktur S09 (68)
Silber - metallic  - S05 (64) Silber - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Antibacterial - S41 (88) Antibacterial S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Khaki - struktur - S27 (21) Khaki - struktur S27 (21)
Lava ash - struktur - S33 (27) Lava ash - struktur S33 (27)
Lime - S26 (09) Lime S26 (09)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus - RAL 9018 (14) Papyrus RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - struktur - S32 (26) Pink coral - struktur S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - struktur - S35 (29) Cinnamon - struktur S35 (29)
Light grey - struktur - S37 (49) Light grey - struktur S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
Dark grey - struktur - S38 (50) Dark grey - struktur S38 (50)
Gold olive - struktur - S28 (22) Gold olive - struktur S28 (22)
