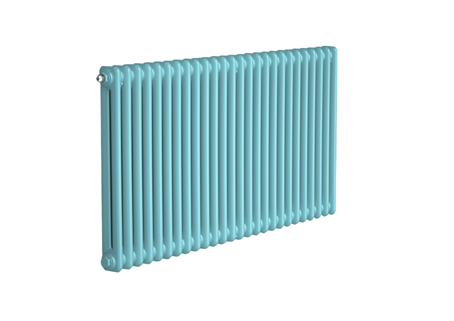

Atol C2

Atol C2

produkt kollektion: Atol

Material: steel tubes diameter 25mm, thickness 1.25mm
Max. working pressure: 1 MPA (10 bar)
Testing pressure: 1,3 MPA (13 bar)
Max. working temperature: 95°C
Basic colour: snow white RAL9016
Connection thread: 2x G1/2“
One element width: 46 mm +/– 1,5%
Max. number of elements: 40pc

Höhe[mm] Breite [mm] Heizung [W]
75 / 65 / 20 °C
300 66 23
400 66 30
500 66 37
600 66 44
750 66 54
900 66 65
1000 66 72
1500 66 107
1800 66 129
2000 66 144
2500 66 183
Schiefer - struktur - S10 (69) Schiefer - struktur S10 (69)
Kupfer- metallic - S03 (62) Kupfer- metallic S03 (62)
Messing - (83) Messing (83)
Sandstein - struktur  - S13 (72) Sandstein - struktur S13 (72)
Elfenbein  - RAL 9001 (04) Elfenbein RAL 9001 (04)
Elfenbein - struktur - S08 (67) Elfenbein - struktur S08 (67)
Snow-white - RAL 9016 (01) Snow-white RAL 9016 (01)
Snow white - struktur - S09 (68) Snow white - struktur S09 (68)
Silber - metallic  - S05 (64) Silber - metallic S05 (64)
Aquamarine - metallic - S29 (23) Aquamarine - metallic S29 (23)
Antibacterial - S41 (88) Antibacterial S41 (88)
Antique gold - metallic - S36 (48) Antique gold - metallic S36 (48)
Anthracite - metallic - S02 (61) Anthracite - metallic S02 (61)
Transparent paint - S20 (84) Transparent paint S20 (84)
Fiery red - RAL 3002 (08) Fiery red RAL 3002 (08)
Black velvet - matt - S40 (51) Black velvet - matt S40 (51)
Pigeon blue - RAL 5014 (07) Pigeon blue RAL 5014 (07)
Khaki - struktur - S27 (21) Khaki - struktur S27 (21)
Lava ash - struktur - S33 (27) Lava ash - struktur S33 (27)
Lime - S26 (09) Lime S26 (09)
Linden green - RAL 6021 (06) Linden green RAL 6021 (06)
Papyrus - RAL 9018 (14) Papyrus RAL 9018 (14)
Ruby - S34 (28) Ruby S34 (28)
Pink coral - struktur - S32 (26) Pink coral - struktur S32 (26)
Sapphire - S30 (24) Sapphire S30 (24)
Cinnamon - struktur - S35 (29) Cinnamon - struktur S35 (29)
Light grey - struktur - S37 (49) Light grey - struktur S37 (49)
Champagne - metallic - S31 (25) Champagne - metallic S31 (25)
Dark grey - struktur - S38 (50) Dark grey - struktur S38 (50)
Gold olive - struktur - S28 (22) Gold olive - struktur S28 (22)
